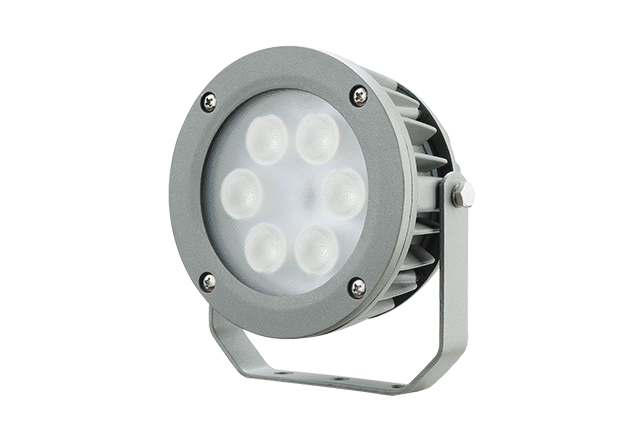

LED Chip Brand : philips/Bridgelux/
Input Volage : AC100-240V 50/60Hz
Light Efficiency : >90m/W
Color Temperature : 3000K/4500K/6000K
Operating Temperature : -40℃ ±60℃
Warranty : 5years
Power Factor : >0.9
Color Rendering Index（Ra) : >70

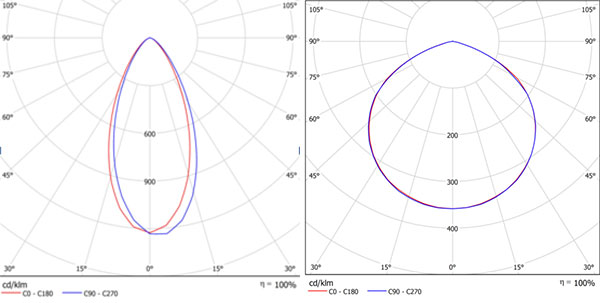

Viewing Angle :160
IP Grade : IP65
Material : Aluminium

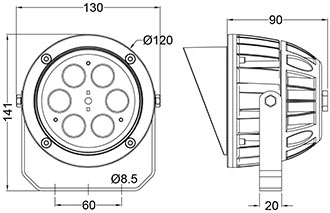

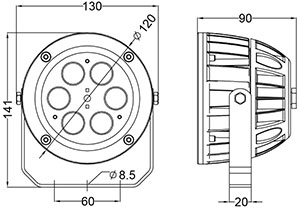

Dimension :（±10mm）
Urban roads and highways
Parking areas
Residential or industrial areas
Parks and commercial areas
|
Model |
Power |
CCT |
Lumen |
Net weight |
Voltage |
Warranty |
|---|---|---|---|---|---|---|
| CY-FB6W | 10watt | 3000-6000K | 720 | 0.85KG | 100-277V | 3 years |
| CY-FB20W | 20watt | 3000-6000K | 1440 | 1.45KG | 100-277V | 3 years |
| CY-FA50W | 50watt | 3000-6000K | 4500 | 3.62KG | 100-277V | 3 years |
| CY-FA60W | 60watt | 3000-6000K | 5400 | 3.62KG | 100-277V | 3 years |
| CY-FA80W | 80watt | 3000-6000K | 7200 | 6.52KG | 100-277V | 3 years |
| CY-FA100W | 100W | 3000-6000K | 9000 | 6.52KG | 100-277V | 3 years |
|
Model |
Power |
Lamp |
Luminous Flux |
Packing(cm) |
GW/N(kgs) |
Installation height |
|---|---|---|---|---|---|---|
| K-T130-9W | 9W | SMD | 900 | 150*150*100 | 2 | |
| K-T1172-36W | 36W | SMD | 3600 | 200*200*160 | 4 |
