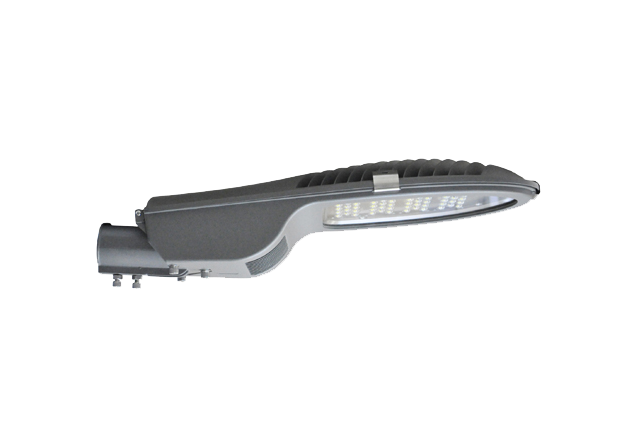

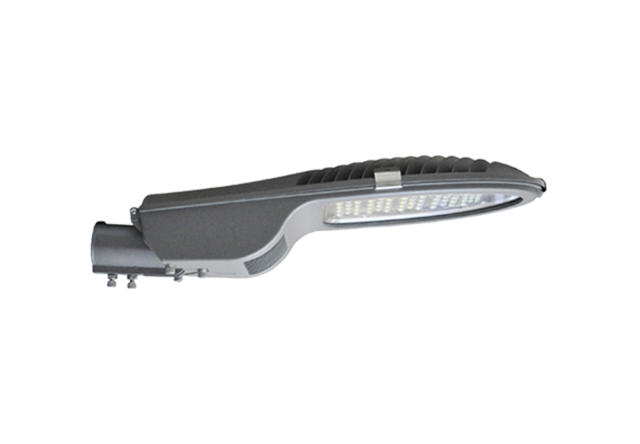

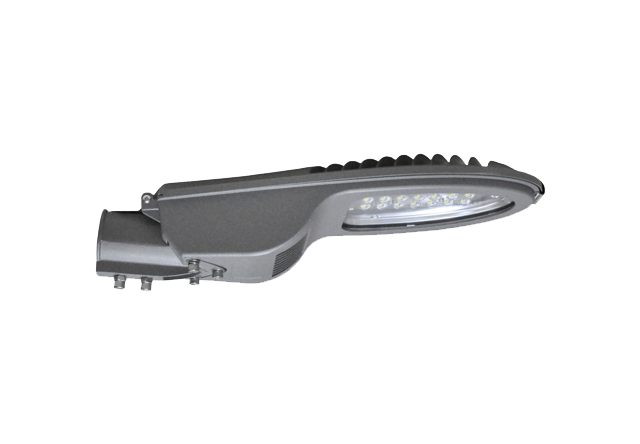

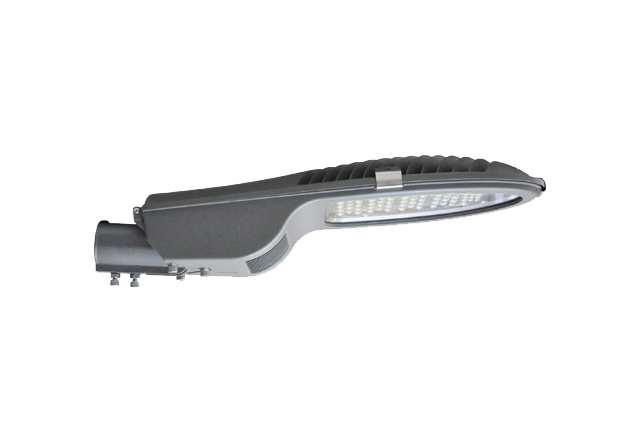

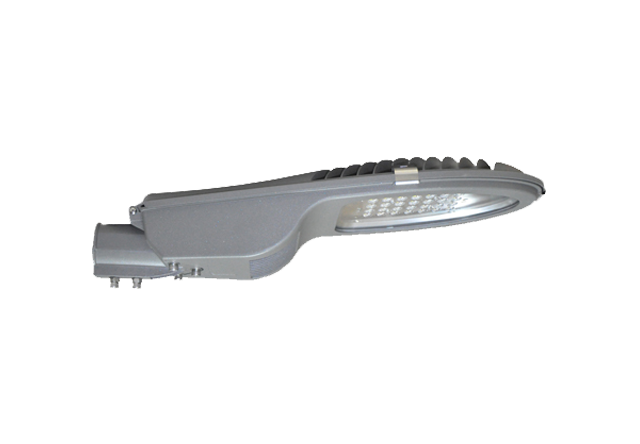

30 to 150 watt adustable LED street lights
  • LED Chip Brand : philips/Bridgelux/

  • Input Volage : AC100-240V 50/60Hz

  • Light Efficiency : >110m/W

  • Color Temperature : 3000K/4500K/6000K

  • Operating Temperature : -40℃ ±60℃

  • Warranty : 3years

  • Power Factor : >0.9

  • Color Rendering Index(Ra) : >70

  • Viewing Angle :

  • IP Grade : IP65

  • Material : Aluminium

  • Driver Brand : MOSO/Meanwell/Sosen

Download

Inquiry Now

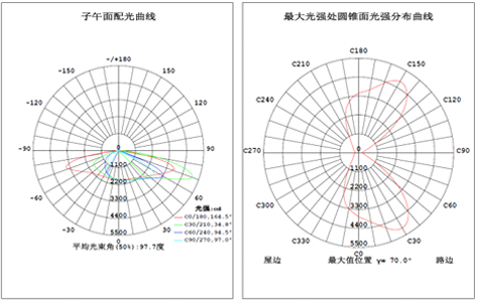

  • Photometric
  • Application

    Urban roads and highways

    Parking areas

    Residential or industrial areas

    Parks and commercial areas

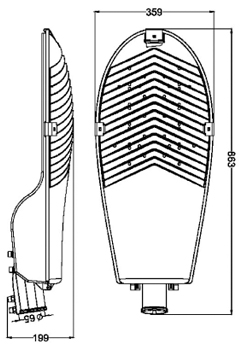

Product Dimension

Model

Power

Lamp

Luminous Flux

Packing(cm)

GW/N(kgs)

Installation height

CY-L42W 30W SMD 4500 57.5*24*16.5 3.68/3.18 4M
CY-L56W 60W SMD 9000 67*30*18 5.45/4.69 6M
CY-L98W 100W SMD 11500 79*34.5*21 8.5/7.5 8M
CY-L140W 150W SMD 17250 90*38.5*21.5 10.6/12 10M
